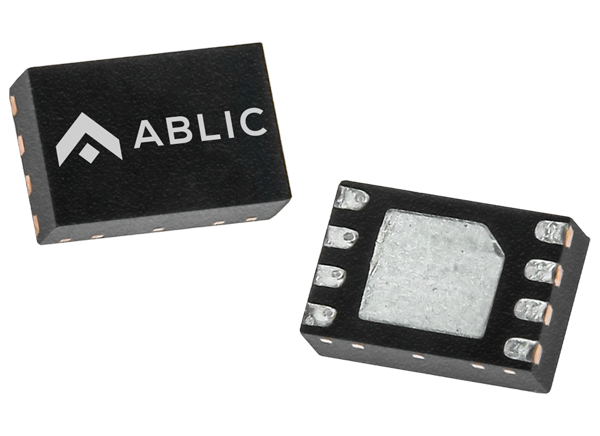

ABLIC S-34TS04A 2-Wire Serial EEPROM comes with a temperature sensor for the Dual In-line Memory Module (DIMM) serial presence detect. This EEPROM incorporates a capacity of 4Kb and the organization of 2 pages × 256-word × 8-bit. The S-34TS04A EEPROM provides page write and sequential read. This EEPROM operates with the I2C bus at 1MHz maximum frequency. The S-34TS04A EEPROM offers a software programmed shutdown mode that can be set by the I2C to achieve a reduction in the current consumption.
Temperature sensor for DIMM serial presence detect
Page write and sequential read available
Software programmed shutdown mode reduces current consumption
Write protect function during low power supply voltage:
Individual software data protection for each of four 128-byte blocks
