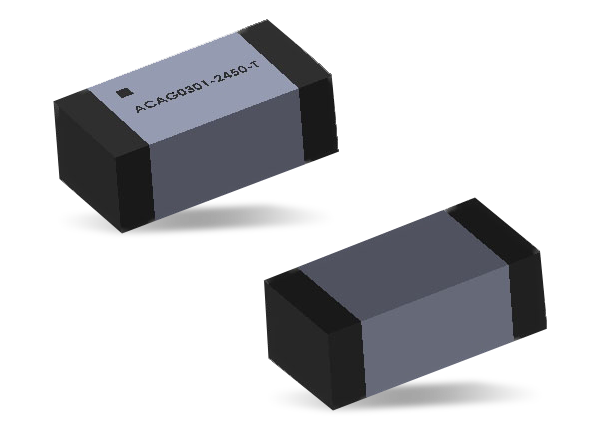

Abracon ACAG0301-2450-T Ceramic Chip Antenna

Abracon ACAG0301-2450-T Ceramic Chip Antenna offers 2.45GHz frequency for operation while delivering a 5.19dBi gain. This chip antenna facilitates linear polarization with omnidirectional azimuthal beam-width. The ACAG0301-2450-T ceramic chip antenna features 100MHz bandwidth and 50Ω impedance. This chip antenna delivers a low Voltage Standing Wave Ratio (VSWR) and operates at -40°C to +85°C temperature range. The ACAG0301-2450-T ceramic chip antenna is ideal for WiFi, BLUETOOTH®, ISM, wearables, IoT, and drone applications.

Features

  • Low VSWR
  • High gain
  • Omnidirectional pattern azimuthal bandwidth
  • Linear polarization

Specifications

  • 2.45GHz operating frequency
  • 100MHz bandwidth
  • 5.19dBi gain
  • 50Ω impedance
  • -40°C to +85°C operating temperature range

Applications

  • WiFi
  • Bluetooth
  • ISM
  • Wearables
  • IoT
  • AR/VR
  • Drones

Dimensions (mm)

Mechanical Drawing - Abracon ACAG0301-2450-T Ceramic Chip Antenna
