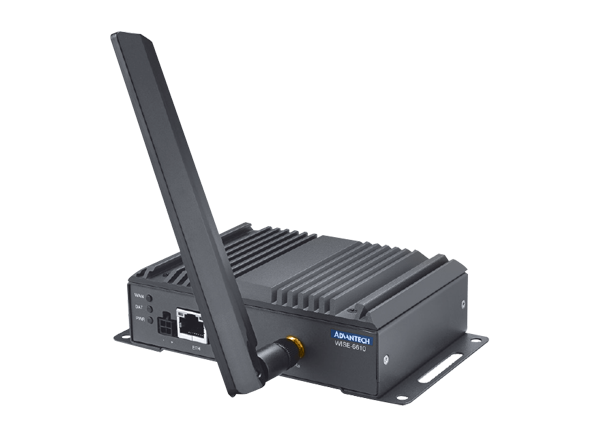

Advantech WISE-6610 Industrial LoRaWAN Gateways

Advantech WISE-6610 Industrial LoRaWAN Gateways are high-performance gateways with reliable connectivity options for industrial environments and LoRaWAN protocol support. This support for LoRaWAN protocol helps in building LoRaWAN private and public networks. The WISE-6610 gateways also support other protocols, including Message Queuing Telemetry Transport (MQTT), and its hardware and software flexibility provides rich features for edge intelligence systems. These gateways operate at -45°C to +75°C temperature range. The WISE-6610 offers redundancy-enhanced functions for preventing connection loss.

Advantech WISE-6610 gateways allow VPN tunnel creation with various protocols that ensure safe communication. These gateways also provide a network server that can encrypt and convert LoRaWAN data in the device.

Other features include an 868MHz to 915MHz frequency range, a power input range of 9V_DC to 36V_DC, DIN rail or wall mounting, and an IP30 enclosure rating.

Features

Long-range wide area IoT gateway
LoRaWAN protocol for closed and public system application
Ethernet and I/O for connecting a wide array of field assets
Low power consumption for solar and battery power applications

DIN rail and wall mounting design
Enhanced memory for hosting custom software applications
Redundancy-enhanced functions for continuous data transmission

Specifications

WSN Support
- Standard LoRaWAN
- 868MHz to 915MHz frequency range
- 1 x RP-SMA male ANT connector
LAN Interface
- Ethernet 10/100Mbps, auto MDI/MDIX
- 1 x RJ45 connector
- 1.5kV built-in magnetic isolation protection

Digital I/O
- Port type 1x digital input on voltage 2.7V_DC to 36V_DC
- 4-way Molex mini-fit port connector
IP30 enclosure rating
3.1mW/6.6mW/40mW of power consumption
Operates at -40°C to +75°C temperature range
9V_DC to 36V_DC power input voltage
