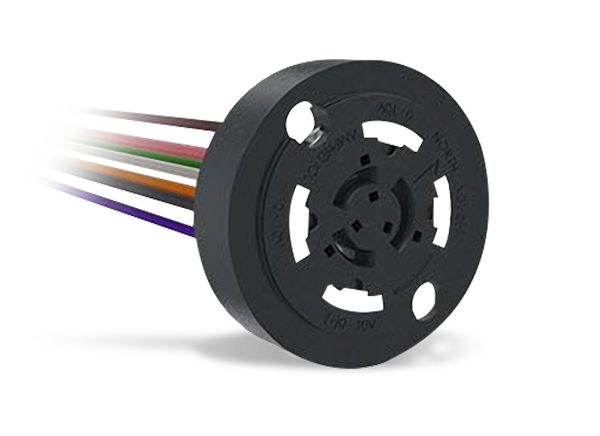

Amphenol Commercial FLA Dimming Receptacles
Amphenol Commercial FLA Dimming Receptacles are designed with power and dimming / signal contacts to provide a connection between a dimmable photocell and the luminaire for commercial and utility lighting. These locking-type receptacles comply with ANSI C136-41 and can be used for lighting applications inside intelligent buildings. Amphenol Commercial FLA Dimming Receptacles feature UL 94V-0 high temperature-resistant housings and are rated up to 15A per power contact. Typical applications include smart buildings, area lighting, and street lighting.
Features
- 0, 2, or 4 dimming contacts offer design and application flexibility
- Easily integrates into new or existing lighting fixtures
- UL 94V-0 rated high-temperature resistant housing ensures application safety
- -40°C to +105°C operating temperature range is suitable for a range of environments
- Receptacle comes pre-terminated with wire ranging from 18AWG to 14AWG rated at +105°C or +150°C
- RoHS compliant
Applications
- Industrial and instrumentation
- Intelligent buildings
- Area lighting
- Street lighting
Specifications
- 600V AC/DC voltage
- 15A power current rating per contact
- 0V to 10V dimming voltage rating
- Δ30mΩ max. power contact resistance LLCR
- Δ30mΩ dimming contact resistance
- 500MΩ min. insulation resistance
- 2500VAC at sea level dielectric withstanding voltage
