Amphenol Sine Systems ATHD Single-Pole Heavy Duty Power Connectors

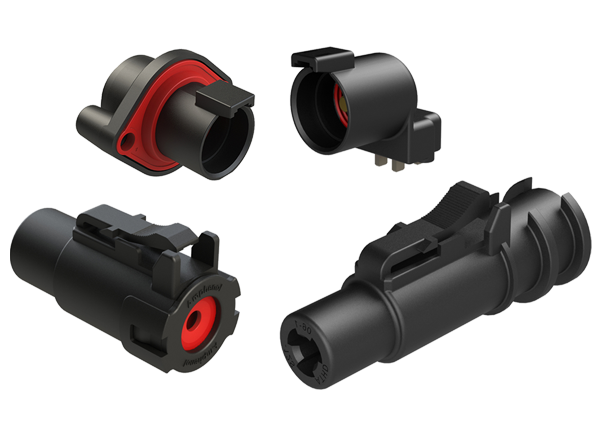

Amphenol Sine Systems ATHD Series™ Single-Pole, Heavy Duty Power Connectors feature an IP67/69K rated (mated) and environmentally sealed connection system. The ATHD series offers a viable solution to field splices and terminals in harsh environments. Safety features include an integral latch to prevent inadvertent disconnect and an audible click with a tactile feel to provide circuit confirmation. Precision-machined contact technology maximizes performance and durability while delivering up to 100A of power. The rugged circular housings can be used as an in-line, BoardLock™ ATFHD or easy-to-install sealed flange-mount connection system for heavy-duty applications. Amphenol ATHD Series Heavy Duty Power Connectors are ideal for transportation, diagnostics, military, and alternative energy applications.
Features
- Available in single pole
- Intermatable with industry-standard connectors
- Circular, thermoplastic housing
- Integral latch prevents inadvertent disconnect
- In-line (wire-to-wire), flange mount, of BoardLock options
- Customized project-specific colors
Applications
- Heavy duty
- Transportation
- Marine
- Diagnostic
- Military
- Alternative energy
- Agricultural
Specifications
- Available modifications
- BMXX - BoardLock ATFHD receptacle
- L009 - Sealed front flange receptacle for inside mounting
- L013 - Sealed rear flange receptacle for outside mounting
- E003 - Endcap
- OM - StructurePlus™ ATHD overmolded construction
- Up to 100A current rating
- Up to 1000VAC/DC voltage rating
- 1000MΩ minimum insulation resistance at 25°C
- Mating cycle durability of 100 cycles
- -55°C to +125°C operating temperature range
- 14AWG to 4AWG wire sizes
- ATHD04-1-4P-BM14 - Single pole, receptacle, pin, size 4 contact, threaded insert, nickel plated, potting, and black
- ATHD04-1-8P-BM14 - Single pole, receptacle, pin, size 8 contact, threaded insert, nickel plated, potting, and black
- ATHD04-1-12P-BM14 - Single pole, receptacle, pin, size 12 contact, threaded insert, tin-plated, potting, and black
Related Products
Amphenol Sine Systems ATHD Size 8 & 12 Overmolded Cable Assemblies
Strain relief option based on ATHD Heavy Duty Connectors, 1m to 10m single-ended cordset lengths.
Amphenol Sine Systems BoardLock™ Connectors
Flanged or flangeless, 180° straight or 90° right-angle pin-oriented, wire-to-board versatility.
Amphenol Sine Systems StructurePlus™ AT OMC Series Connectors
Designed for cable assembly operations requiring custom molding or shrink tube requirements
Amphenol Sine Systems AT Series™ Connectors
IP68 and IP69K (mated), high-performance, thermoplastic solution with superior environmental seals.
Amphenol Sine Systems A Series™ Connectors
Heavy-duty, multi-pin plastic and metal connectors designed to serve many industries.
