ams OSRAM AS5247U Adapter Board

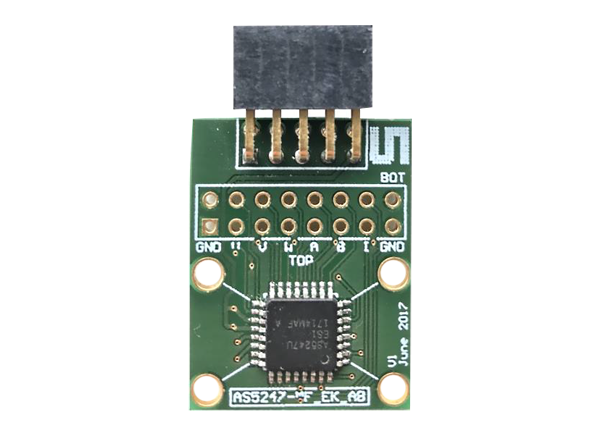

ams OSRAM AS5247U Adapter Board is a small PCB built for quick testing or evaluation of the AS5247U magnetic position sensor. This sensor's relevant input and output pins are available on solder pads. SPI access is possible when the adapter board is directly connected with a ams USB I&P box. ams OSRAM AS5247U Adapter Board comes with a diametric magnet.
Kit Contents
- Adapter board with AS5247U angle sensor
- Diametric magnet
Videos
Schematic
Associated Tools
Related Products
ams OSRAM AS5x47U Position Sensors
Optimized to enable efficient operation of electric motors in power steering and braking systems.
ams OSRAM AS5047U Rotary Position Sensor
14-bit on-axis magnetic rotary position sensor with up to 14-bit binary incremental pulse count.
ams OSRAM AS5x47U Adapter Board
Enables easy and fast evaluation of the AS5047U and AS5147U Magnetic Rotary Position Sensors.
ams OSRAM AS5x47U Motorboard
Simple PCB that is designed to adapt to standard size BLDC or stepper motors.
ams OSRAM AS5247U Socket Board
Used for programming of AS5247U magnetic rotary position sensors.
