ams OSRAM AS5270 Socket Board

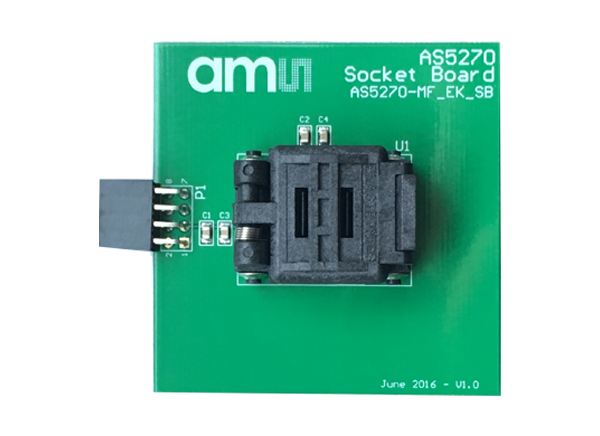

ams OSRAM AS5270 Socket Board is used for quick programming the AS5270A and AS5270B magnetic rotary position sensors without soldering due to its ZIF socket. A ZIF Open-Top-Socket for MLF-16 packages is mounted in the middle. Pin 1 of the IC is indicated by a small white dot on the PCB. ams OSRAM AS5270 Socket Board includes all passive components needed for proper operation on the bottom side of the PCB.
