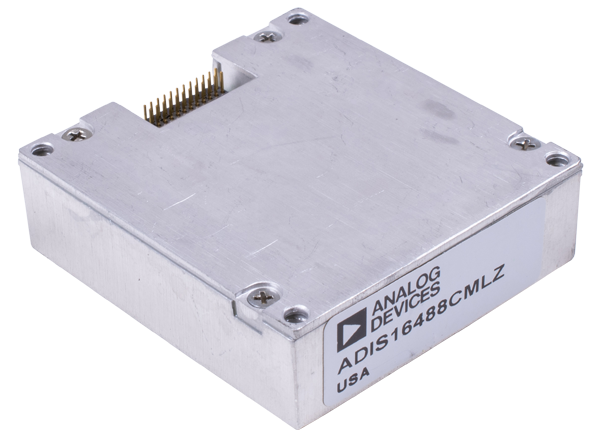

Analog Devices Inc. ADIS16488 Tactical Grade Inertial Sensors

Analog Devices ADIS16488 Tactical Grade Ten Degrees of Freedom Inertial Sensors are part of an inertial system designed to provide a simple method for integrating accurate, multiaxis inertial sensing into industrial systems. Each inertial sensor in the ADIS16488A combines industry-leading iMEMS® technology with signal conditioning that optimizes dynamic performance. The factory calibration characterizes each sensor for sensitivity, bias, alignment, and linear acceleration (gyroscope bias). As a result, each sensor has its own dynamic compensation formulas that provide accurate sensor measurements. Applications include platform stabilization and control, navigation, personnel tracking, instrumentation, and robotics.

Features

  • Triaxial, digital gyroscope, ±450°/sec dynamic range
    • <±0.05° orthogonal alignment error
    • 6°/hr in-run bias stability
    • 0.3°/√hr angular random walk
    • 0.01% nonlinearity
  • Triaxial, digital accelerometer, ±18g
  • Triaxial, delta angle and delta velocity outputs
  • Triaxial, digital magnetometer, ±2.5 gauss
  • Digital pressure sensor, 300 mbar to 1100 mbar
  • Fast start-up time, ~500 ms
  • Factory-calibrated sensitivity, bias, and axial alignment
    • −40°C to +70°C Calibration temperature range
  • SPI-compatible serial interface
  • Embedded temperature sensor
  • Programmable operation and control
    • Automatic and manual bias correction controls
    • 4 FIR filter banks, 120 configurable taps
    • Digital I/O data-ready alarm indicator, external clock
    • Alarms for condition monitoring
    • Power-down/sleep mode for power management
    • up to 2.4kHz Optional external sample clock input
    • Single-command self-test
  • 3.0V to 3.6V Single-supply operation
  • 2000g shock survivability
  • −40°C to +85°C Operating temperature range

Applications

  • Platform stabilization and control
  • Navigation
  • Personnel tracking
  • Instrumentation
  • Robotics

Associated Products

ADIS16550 Six Degrees of Freedom Inertial Sensor

Analog Devices Inc. ADIS16550 Six Degrees of Freedom Inertial Sensor

Features a complete inertial system with a tri-axis gyroscope and accelerometer.

Learn Moreabout Analog Devices Inc. ADIS16550 Six Degrees of Freedom Inertial Sensor View Productsrelated to Analog Devices Inc. ADIS16550 Six Degrees of Freedom Inertial Sensor

Block Diagram

Block Diagram - Analog Devices Inc. ADIS16488 Tactical Grade Inertial Sensors
