Analog Devices Inc. ADL6010-EVALZ Eval for ADL6010 Envelope Dector

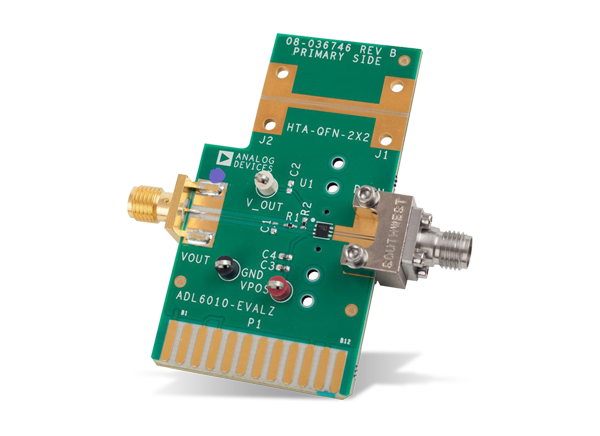

Analog Devices Inc. ADL6010-EVALZ Eval for ADL6010 Envelope Dector is a fully populated, 4-layer, Rogers 4003-based evaluation board for the evaluation of the ADL6010. For normal operation, the evaluation board only requires a 5V supply connected to VPOS and GND. The RF input signal is accepted at a high-performance 2.92mm connector (RFIN). The output voltage is available on the SMA connector (VOUT) or on the test loop (V_OUT).

Associated Detector

ADL6010 Envelope Detector

Analog Devices Inc. ADL6010 Envelope Detector

Versatile, broadband envelope detector covering the microwave spectrum.

Learn Moreabout Analog Devices Inc. ADL6010 Envelope Detector View Productsrelated to Analog Devices Inc. ADL6010 Envelope Detector

Features

  • Fully populated, 4-layer Rogers 4003-based evaluation board for the evaluation of the ADL6010
  • Evaluation board only requires a 5V supply connected to VPOS and GND
  • RF input signal is accepted at a high-performance 2.92mm connector (RFIN)
  • Output voltage is available on the SMA connector (VOUT) or on the test loop (V_OUT).
Published: 2018-09-14 | Updated: 2023-02-24
