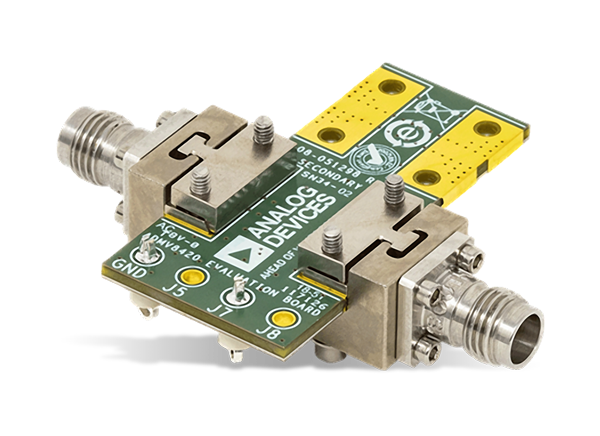

Analog Devices Inc. ADMV8420-EVALZ Evaluation Board is ideal for getting started on development with the ADMV8420 Tunable Band-Pass Filters. The ADMV8420 Tunable Band-Pass Filters are monolithic microwave integrated circuits (MMIC) that feature a user-selectable passband frequency. The ADMV8420-EVALZ Evaluation Board signal lines must have 50Ω impedance while the package ground leads and exposed pad must be connected directly to the ground plane. The device uses a sufficient number of via holes to connect the top and bottom ground planes.
Analog Devices Inc. ADMV8420 Tunable Band-Pass Filters
Monolithic microwave integrated circuits that feature a user-selectable passband frequency.
