Analog Devices Inc. ADRV9002 Evaluation Boards

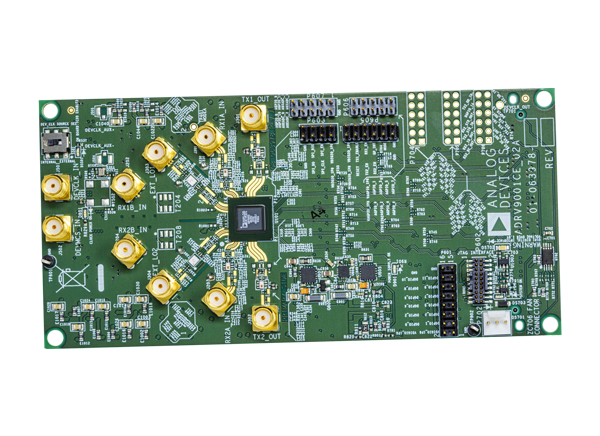

Analog Devices Inc. ADRV9002 Evaluation Boards are designed to evaluate the ADRV9002, a dual-channel narrow/wide-band RF transceiver. These evaluation boards provide a 2x2 transceiver platform for device evaluation and include a high-efficiency power circuit board and a high-performance clocking/MCS distribution. The ADRV9002 evaluation boards are connected with the FPGA motherboard through the FMC connector that forms a complete evaluation platform for ADRV9002.

The Analog Devices Inc. ADRV9002 Evaluation Boards are designed to be used in conjunction with the ZYNQ ZC706 FPGA Motherboard (EK-Z7-ZC706-G), which then connects to a PC using an Ethernet interface.

Features

  • 2x2 narrow/wide-band RF transceiver platform
  • Complete radio cards for evaluation:
    • ADRV9002NP/W1/PCBZ for 30MHz to 3GHz frequency band range
    • ADRV9002NP/W2/PCBZ for 3GHz to 6GHz frequency band range
  • Powered from single FMC connector
  • FMC connector to FPGA motherboard (ZC706)
  • On-board:
    • Clock and MCS distribution
    • Reference design for high-efficiency power supply solution
    • Power consumption monitoring solution

Videos

Supported Devices

ADRV9002 Dual Narrow/Wideband RF Transceiver

Analog Devices Inc. ADRV9002 Dual Narrow/Wideband RF Transceiver

Delivers a versatile combination of high performance and low power consumption.

Learn Moreabout Analog Devices Inc. ADRV9002 Dual Narrow/Wideband RF Transceiver View Productsrelated to Analog Devices Inc. ADRV9002 Dual Narrow/Wideband RF Transceiver

Recommended for Use

Zynq-7000 SoC ZC706 Evaluation Kit

Xilinx Zynq-7000 SoC ZC706 Evaluation Kit

Provides a hardware environment for evaluating designs targeting the Zynq-7000 XC7Z045 SoCs.

Learn Moreabout Xilinx Zynq-7000 SoC ZC706 Evaluation Kit View Productsrelated to Xilinx Zynq-7000 SoC ZC706 Evaluation Kit
