Analog Devices Inc. ADTR1107-EVALZ Evaluation Board

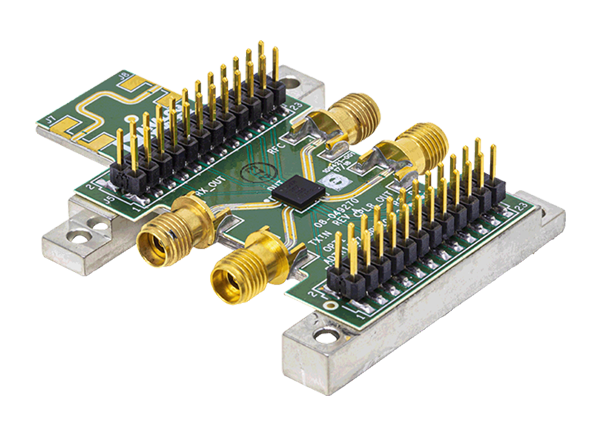

Analog Devices Inc. ADTR1107-EVALZ Evaluation Board consists of a two-layer printed circuit board (PCB) fabricated from a ten mil thick, Rogers 4350B copper-clad mounted to an aluminum heat sink. The heat sink aids in providing thermal relief to the device and mechanical support to the PCB. The heat sink has mounting holes to permit attachment to more massive heat sinks for improved thermal management.
The ADI ADTR1107-EVAL is populated with components suitable for use over the -40°C to +85°C operating temperature range of the ADTR1107. The TX_IN, ANT, RX_OUT, and CPLR_OUT ports are populated by 2.9mm, female coaxial connectors. The corresponding RF traces of the ports have a 50Ω characteristic impedance. Two 24-pin headers allow access to drain, ground, and gate control voltages.
Features
- 2-layer Rogers 4350 evaluation board with heat sink
- End launch 2.9mm RF connectors
- Through calibration path (unpopulated)
Kit Contents
- 2-layer, Rogers 4350, ADTR1107-EVAL evaluation board with heat sink
Required Equipment
- RF signal generator
- RF spectrum analyzer
- RF network analyzer
- 5V, 1A power supply
- 3.3V, 500mA power supply
- 0V to -2V, 100mA power supply
- Dual supply ±3.3V, 100mA power supply
Associated Products
Analog Devices Inc. ADTR1107 Front-End ICs
Compact, 6GHz to 18GHz Front End ICs that are ideal for phased array antenna or radar applications.
Layout
Assembly Drawing
