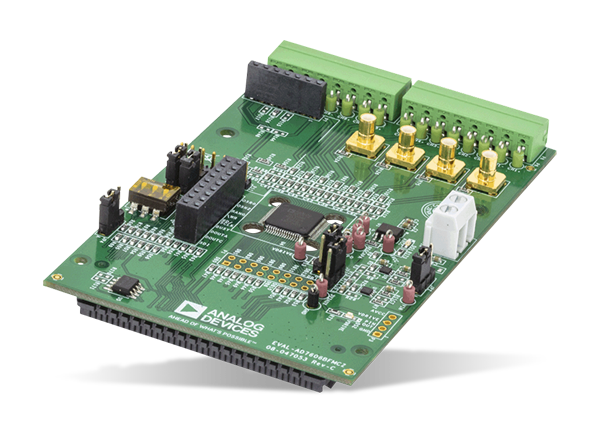

Analog Devices Inc. EVAL-AD7606BFMCZ ADC Evaluation Board
Analog Devices EVAL-AD7606BFMCZ ADC Evaluation Board allows users to easily evaluate the features of the AD7606B analog-to-digital converter (ADC). The EVAL-AD7606BFMCZ can be controlled by the system demonstration platform controller board (EVAL-SDP-CH1Z (SDP-H1)). The EVAL-SDP-CH1Z (SDP-H1) allows the EVAL-AD7606BFMCZ to be controlled through the USB port of a PC using the AD7606B evaluation software.
Onboard components include an ADP7118 5V, low noise low dropout regulator (LDO) and an ADR4525 high-precision, bandgap voltage reference.
Features
- Full-Featured Evaluation Board for the AD7606B
- Onboard Power Supplies
- Standalone Capability
- SDP-H1 Compatible (EVAL-SDP-CH1Z (SDP-H1))
- PC Software for Control and Data Analysis
- Time and Frequency Domain
Kit Contents
- EVAL-AD7606BFMCZ Evaluation board
- Additional Equipment Needed
- System Demonstration Platform (SDP) High-Speed Controller Board (EVAL-SDP-CH1Z (SDP-H1))
- PC Running Windows Vista or Windows 7 with a USB 2.0 Port
- DC/AC Signal Source SMB and USB Cables
- External Supply (Optional)
- Documents Needed
- AD7606B Data Sheet
- EVAL-AD7606BFMCZ User Guide
- Schematics
- Layout Files
- Bill of Materials
- Required Software
- AD7606B Evaluation Software
Associated Product
Analog Devices Inc. AD7606 16-Bit Data Acquisition Systems (DAS)
Offers eight, six, or four channels and operates from a single 5V supply.
Associated Development Tool
Analog Devices Inc. EVAL-SDP-CH1Z High-Speed Controller Board
High-speed controller board for the Analog Devices System Demonstration Platform (SDP).
Published: 2019-07-31
| Updated: 2022-03-10
