Analog Devices Inc. EVAL-ADE9000EBZ Evaluation Board for ADE9000 AFE

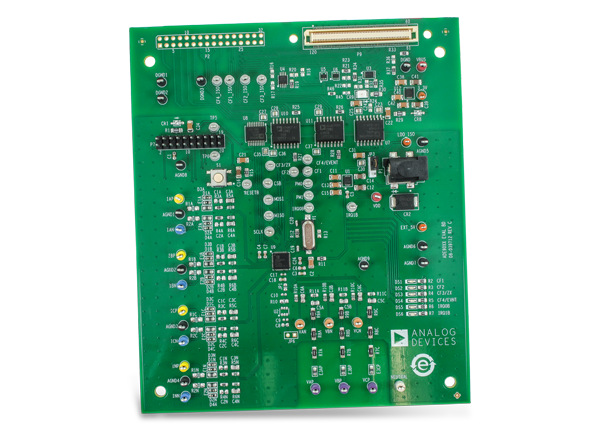

Analog Devices Inc. EVAL-ADE9000EBZ Evaluation Board enables the performance of the ADE9000 AFEs to be evaluated in a context similar to an actual power quality monitor. The ADE9000 evaluation kit includes the evaluation board. The Analog Devices EVAL-ADE9000EBZ Evaluation Board works in conjunction with the controller board for the EVAL-SDP-CB1Z system demonstration platform and the ADE9000 evaluation software. The evaluation software is written in LabVIEW®. This software provides access to the registers and features of the device using a PC interface.
Features
- Full-featured evaluation board for the ADE9000
- PC control in conjunction with the EVAL-SDP-CB1Z system demonstration platform (SDP)
- PC software for control and data analysis (time and frequency domain)
- Standalone capability
Kit Contents
- EVAL-ADE9000EBZ Evaluation Board
TYPICAL EVALUATION BOARD SETUP
EVAL-ADE9000EBZ (Left) Connected to EVAL-SDP-CB1Z SDP Interface Board (Right)
Associated Product
Analog Devices Inc. ADE9000 AFEs
Multi-phase energy and power quality monitoring devices; ±3ºC accuracy over a wide dynamic range.
Associated Eval Tools
Analog Devices Inc. EV-ADE9000SHIELDZ Arduino Shield
Enables evaluation and prototyping of energy and power measurement systems with the ADE9000 AFEs.
Analog Devices Inc. EVAL-SDP-CB1Z System Demonstration Platform
Provides a means of communicating w/PC from the system under evaluation.
