Analog Devices Inc. EVAL-ADICUP3029 Development Platform

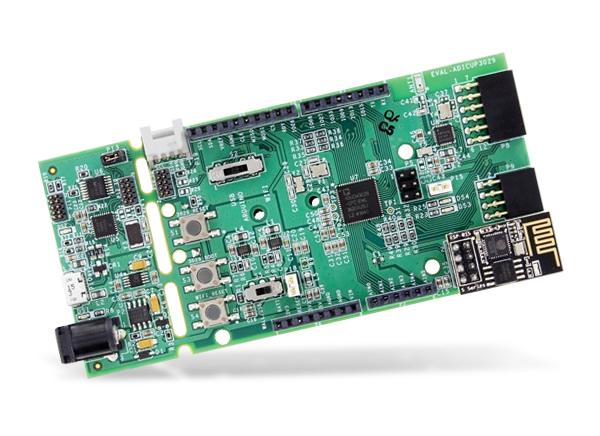

Analog Devices Inc. EVAL-ADICUP3029 is an Arduino-based Wireless Development Platform for Internet of Things applications based on an ultra-low power ARM Cortex-M3 processor. The EVAL-ADICUP3029 from Analog Devices is compatible with Arduino, Pmod™, and Grove form factors and includes BLUETOOTH® and WiFi connectivity. The EVAL-ADICUP3029 Board uses CrossCore Embedded Studio, an open-source Eclipse-based Integrated Development Environment (IDE), which can be downloaded free of charge.
Features
- ADuCM3029 Ultra Low Power ARM Cortex-M3 MCU with Integrated Power Management
- Arduino Uno R3, Pmod, and Grove I2C compatible connectors
- Low energy Bluetooth and Wi-Fi connectivity
- Open-source IDE tools CrossCore Embedded Studio
- No external debugger or emulator tools needed
Resources
Videos
On The Board
Analog Devices Inc. ADuCM3027 & ADuCM3029 ULP Microcontrollers
Ultra Low Power 32-bit Arm Cortex-M3 Core based MCUs, offering performance, power, and security.
Related Development Tools
Analog Devices Inc. EVAL-CN0536-ARDZ Circuit Evaluation Board
A low-power Geiger counter radiation detector in an Arduino shield form factor.
Analog Devices Inc. EVAL-CN0503-ARDZ Liquid Measurement Platform
Optical-based liquid measurement reference design based on the ADPD4101 Multimodal Sensor Front End.
Analog Devices Inc. EV-COG-BLEINTP1Z RF Interposer Board
RF interposer board for MCU Cogs; provides BLE connectivity and provision for Wifi module.
Analog Devices Inc. EV-GEAR-EXPANDER1Z Expansion Add-on Board
Supports the MCU Cogs in the Analog Devices Ultra-Low Power Development Platform.
Analog Devices Inc. CN0537 Reference Design for UL-217 Smoke Detector
Demonstrates the use of the ADPD188BI Optical Module in a smoke/fire detection application.
Analog Devices Inc. EV-COG-AD3029LZ Modular IoT Development Platform
Dev board for the ultra-low power EV-COG-AD3029 IOT Cog Development Platform.
Analog Devices Inc. EVAL-CN0410-ARDZ Arduino Shield for LED Control
Optimized for smart agriculture to control the current passing through LEDs.
Analog Devices Inc. EVAL-CN0507-ARDZ Complete 2-Port Network Analyzer
Uses a low-cost Zero Intermediate Frequency (ZIF) architecture in an Arduino form factor.
Analog Devices Inc. EVAL-ADT7420-PMDZ Pmod™ Board
+/-0.25 degree Celsius Temperature Measurement Pmod™ Board.
Analog Devices Inc. EVAL-CN0552-PMDZ Evaluation Board
Demonstration platform for the AD7746 CDC, designed for use with the EVAL-ADICUP3029 Board.
Board Layout
