Analog Devices Inc. EVAL-ADP5070 Evaluation Boards

Analog Devices ADP5070CP-EVALZ and ADP5071CP-EVALZ evaluation boards demonstrate the functionality of the ADP5070 and ADP5071 DC-to-DC converters, respectively. The boards can evaluate simple device measurements, such as line regulation, load regulation, and efficiency. These evaluation boards also demonstrate device features such as including selectable operating frequency, soft start, sequencing, and slew rate control.

The ADP7142 and ADP7182 low dropout (LDO) regulators may be added to the board as an option for enhanced low noise output. The EVAL-ADP5070 evaluation boards offer a 3.0V to 5.5V input voltage range, ±15V output voltage without LDOs, and ±12V with LDOs.

Features

  • Input voltage range 3V to 5.5V
  • Output Voltage +/-15V
  • Output Voltage With LDOs +/-12V

Applicable Products

ADP5070/ADP5071 DC-to-DC Switching Regulators

Analog Devices Inc. ADP5070/ADP5071 DC-to-DC Switching Regulators

Dual, high performance DC-to-DC regulators that generate inde

Learn Moreabout Analog Devices Inc. ADP5070/ADP5071 DC-to-DC Switching Regulators View Productsrelated to Analog Devices Inc. ADP5070/ADP5071 DC-to-DC Switching Regulators

Related Development Tools

Signal Chain Power Hardware Evaluation Platform

Analog Devices Inc. Signal Chain Power Hardware Evaluation Platform

Enables users to quickly develop, prototype, and evaluate complete power solutions.

Learn Moreabout Analog Devices Inc. Signal Chain Power Hardware Evaluation Platform View Productsrelated to Analog Devices Inc. Signal Chain Power Hardware Evaluation Platform

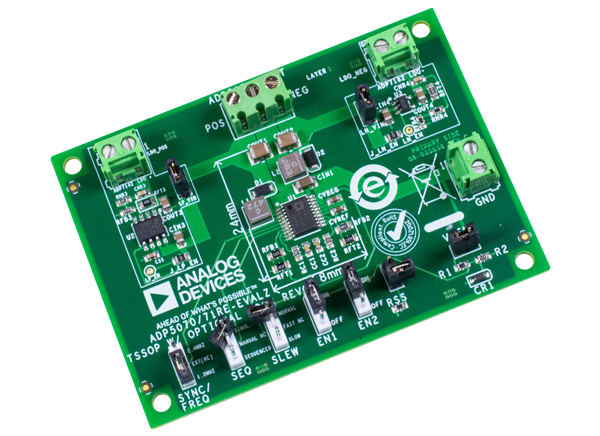

Board Layout
