Analog Devices Inc. EVAL-AD5600PMDZ Evaluation Board

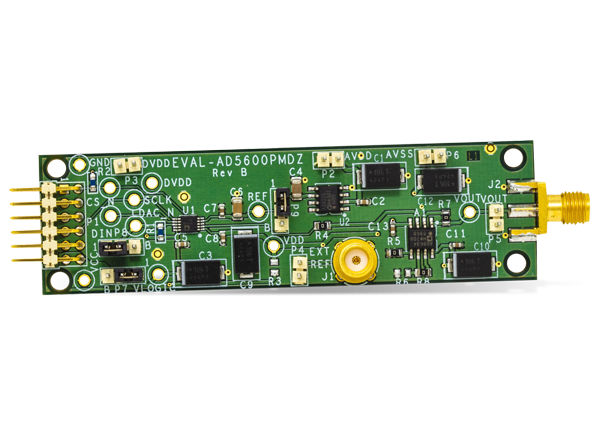

Analog Devices Inc. EVAL-AD5600PMDZ Evaluation Board is a demonstration and prototyping platform for the AD5600 high-temperature 16-Bit Digital-to-Analog Converter (DAC). The EVAL-AD5600PMDZ Board also incorporates the ADR225 high-temperature voltage reference and the AD8634 high-temperature dual operational amplifier.
The EVAL-AD5600PMDZ interfaces to the USB port of a PC via a System Demonstration Platform (SDP) Board, such as the EVAL-SDP-CB1Z, and the SDP-PMD-IB1Z PMOD to SDP Interposer Board. The EVAL-AD5600PMDZ uses the ACE (Analysis Control Evaluation) evaluation software, a desktop software application that allows the evaluation and control of multiple development tools. The ACE software is available for download from the Analog Devices Inc. website. A Peripheral Module (PMOD) connection is also available to allow the connection of microcontrollers to the evaluation board without the SDP board. Note that when a microcontroller is used through the PMOD connection, the SDP board must be disconnected, and the user is unable to use the ACE software.
Kit Contents
- EVAL-AD5600PMDZ Evaluation Board
- SDP-PMD-IB1Z PMOD to SDP Interposer Board
Applicable Products
Analog Devices Inc. AD5600 High Temperature 16-Bit DAC
Single-channel voltage output Digital-to-Analog Converter designed for high-temperature operation.
Required For Use
Analog Devices Inc. EVAL-SDP-CB1Z System Demonstration Platform
Provides a means of communicating w/PC from the system under evaluation.
Setup Example
