Analog Devices Inc. EVAL-XLMOUNT1 Mounting Block

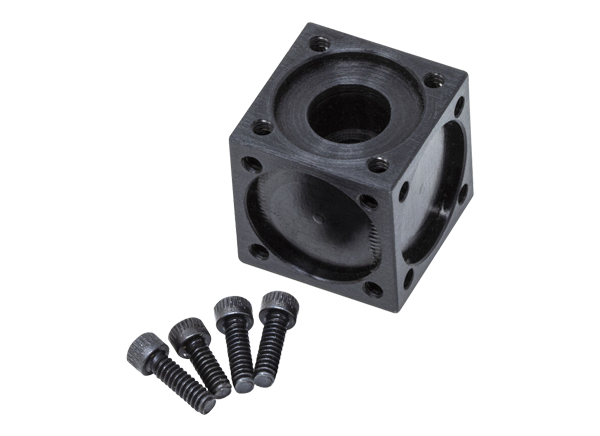

Analog Devices Inc. EVAL-XLMOUNT1 Mounting Block provides a mechanically optimized mounting block for accelerometer breakout boards. The aluminum EVAL-XLMOUNT1 can be used to secure an accelerometer to any source acceleration, such as a shaker table, while providing optimized mechanical characteristics for evaluating the sensor frequency response and other characteristics. The EVAL-XLMOUNT1 Mounting Block provides a ±1.5dB flat response up to 20kHz. The accelerometer breakout board can be attached to the mounting block in multiple orientations along the 5 different faces of the block.
