Analog Devices Inc. HMC8192 MMIC I/Q Mixer

Analog Devices Inc. HMC8192 MMIC I/Q Mixer is a passive, wideband, Inphase/Quadrature (I/Q), Monolithic Microwave Integrated Circuit (MMIC) that can be used either as an image rejection mixer for receiver operations or as a single-sideband upconverter for transmitter operations. With a Radio Frequency (RF) and Local Oscillator (LO) range of 20GHz to 42GHz and an Intermediate Frequency (IF) bandwidth of DC to 5GHz, the HMC8192LG is ideal for applications requiring a wide frequency range, excellent RF performance, and a simple design with fewer components and a small printed circuit board (PCB) footprint. A single HMC8192LG can replace multiple narrow-band mixers in a design.

The inherent I/Q architecture of the HMC8192LG offers excellent image rejection, eliminating the need for expensive filtering for unwanted sidebands. The mixer also provides excellent LO to RF and LO to IF isolation, and reduces the effect of LO leakage to ensure signal integrity.

As a passive mixer, the HMC8192LG does not require any DC power sources. The HMC8192LG offers a lower noise figure compared to an active mixer, ensuring superior dynamic range for high performance and precision applications.

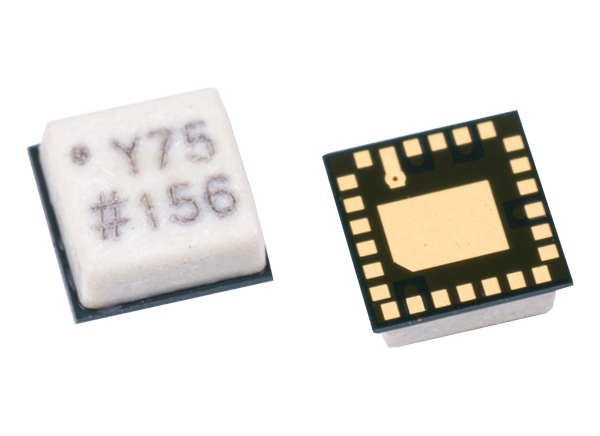

The HMC8192LG is fabricated on a gallium arsenide (GaAs), metal-semiconductor field-effect transistor (MESFET) process and uses Analog Devices, Inc. mixer cells and a 90° hybrid. The HMC8192LG is available in a compact, 4.00mm x 4.00mm, 25-terminal land grid array cavity (LGA_CAV) package and operates over a -40°C to +85°C temperature range.


  • Passive, wideband I/Q mixer
  • RF and LO range: 20GHz to 42GHz
  • Wide IF bandwidth of DC to 5GHz
  • Single-ended RF, LO, and IF
  • Conversion loss: 9dB typical*
  • Image rejection: 25dBc typical
  • Noise figure: 12dB typical
  • Input IP3 (downconverter): 24dBm typical
  • Input P1dB (downconverter) compression: 17dBm typical
  • Input IP2: 55dBm typical

    *All ratings at 20GHz to 32GHz, unless otherwise noted
  • LO to RF isolation: 42dB
  • LO to IFx isolation: 45dB
  • RF to IF isolation: 35dB
  • Amplitude balance: ±1dB typical
  • Phase balance (downconverter): ±8° typical
  • RF return loss: 12dB typical
  • LO return loss: 10dB typical
  • IFx return loss: 20dB typical
  • Exposed pad, 4.00mm x 4.00mm, 25-terminal LGA_CAV package


  • Test and measurement instrumentation
  • Military, radar, aerospace, and defense applications
  • Microwave point to point base stations

Block Diagram & Pin Designations

Block Diagram - Analog Devices Inc. HMC8192 MMIC I/Q Mixer

Typical Application Circuit

Application Circuit Diagram - Analog Devices Inc. HMC8192 MMIC I/Q Mixer
Published: 2019-12-12 | Updated: 2022-03-11
