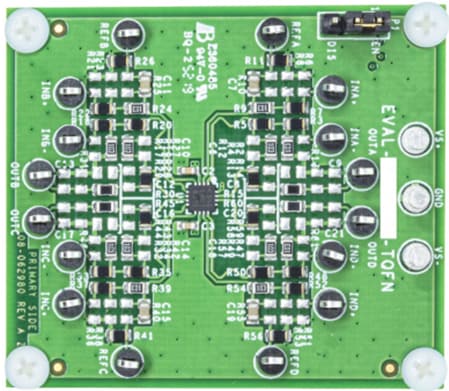

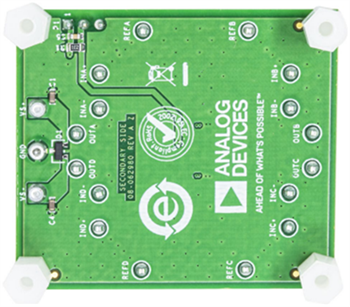

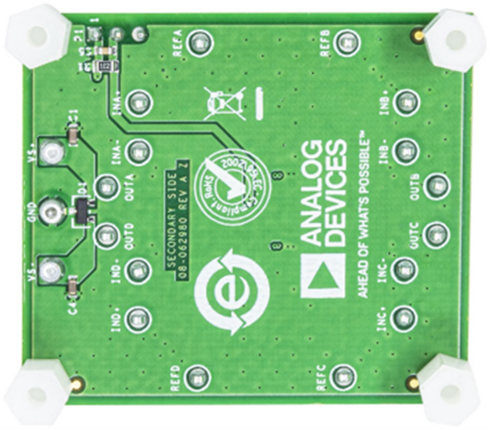

Analog Devices Inc. LTC2068-TQFN Evaluation Board
Analog Devices Inc. LTC2068-TQFN Evaluation Board evaluates the LTC2068 operational amplifier. This prepopulated board uses a gain of 2 configurations with a low-pass filter at the noninverting input. The LTC2068-TQFN evaluation board enables efficient prototyping and offers a simplified connection to test equipment and other circuits. This evaluation board operates at 1.7V to 5.25V supply voltage range and provides the options to implement active loop filters, trans-impedance amplifiers, and sense amplifiers.
Features
- Fully featured evaluation board for LTC2068
- Enables efficient prototyping
- User-defined circuit configuration
- 1.7V to 5.25V operating voltage range
- 2.4kHz cutoff frequency
Overview
Related Product
Analog Devices Inc. LTC2068x Operational Amplifiers
Designed for high-resolution measurements at low power levels and operate at 10µA supply current.
Published: 2020-07-30
| Updated: 2022-03-11
