Analog Devices Inc. RAPID-TSNEK-V0001 TSN Evaluation Kit
Analog Devices RAPID-TSNEK-V0001 TSN Evaluation Kit provides a complete TSN gateway solution that allows any standard 100BaseTX Ethernet device to connect to a TSN network. The evaluation kit is configured to provide TSN Gateway functionality in order to quickly assess TSN features and capabilities. The kit also helps designers better understand how TSN works. With this knowledge, it is possible to use the fido5000 Real-time Ethernet Multi-protocol (REM) Switch chip to provide a TSN solution for a product.
Using the TSN gateway functionality allows a non-TSN device to participate in a TSN network without implementing TSN-specific features natively. The TSN gateway has built-in features from the following IEEE specifications:
• 802.1AS, AS-REV – Time Synchronization
• 802.1Qbv – Scheduled Traffic
• 802.1Qci – Ingress Policing
• 802.1CB – Seamless Redundancy
• 802.1Qcc – Stream Reservation Protocol
• 802.1Qbu / 802.3br – Preemption

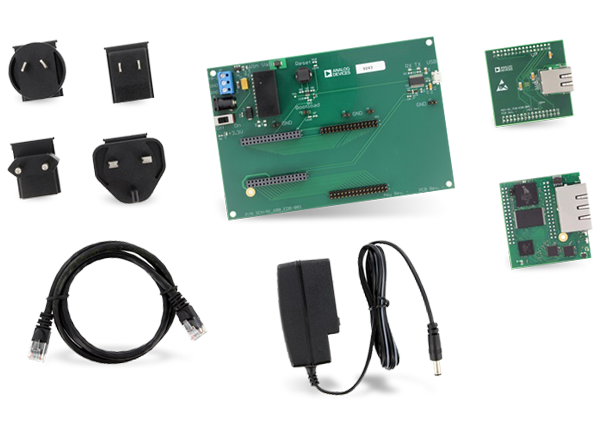

Kit Contents
- 2-port TSN Ethernet Module
- Standard Ethernet Module
- Baseboard with Power Supply
- RJ-45 Ethernet Cable
Associated Products
Analog Devices Inc. fido1100 Real-Time Communications Controllers
32-Bit MCU that supports multiple protocols and deterministic processing.
Analog Devices Inc. fido2100 Industrial Ethernet Switches
Managed 3-port Ethernet switches with support for IEEE-1588 and Device Level Ring (DLR) protocols.
Analog Devices Inc. Fido5100/Fido5200 REM Switches
REM switches supporting PROFINET, EtherNet/IP, EtherCAT, Modbus/TCP, POWERLINK, and SERCOS III.
