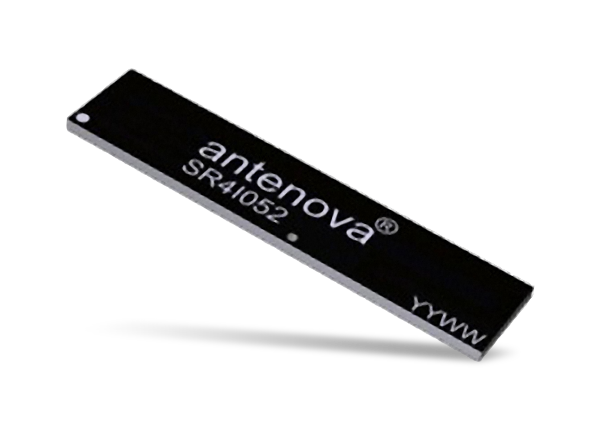

Antenova SR41052 Velox Antenna is engineered specifically for 868/915 industrial, scientific, and medical (ISM) applications that require a compact, robust solution. These antennas use a ground plane on the host PCB and an external matching circuit for device optimization. The surface-mount module features a low-profile design and covers an 863MHz to 928MHz frequency band. Antenova SR41052 Velox Antenna has an automotive-grade temperature range from -40°C to +140°C. Applications include ISM, agriculture and environment, remote monitoring, smart meters, network devices, manufacturing automation, consumer tracking, and other M2M.
For 868/915 ISM applications
863MHz to 928MHz frequency range
SMD mounting type
50Ω impedance with matching
Compact with a low profile
35.0mm x 8.0mm x 0.9mm dimensions
Supplied in tape and reel
-40°C to +140°C operating temperature (automotive grade)
Agriculture and environment
Antenova SR41052 Velox Antenna Reference Board
Reference Boards are designed for the evaluation of SR41052 Velox Antennas for ISM applications.
