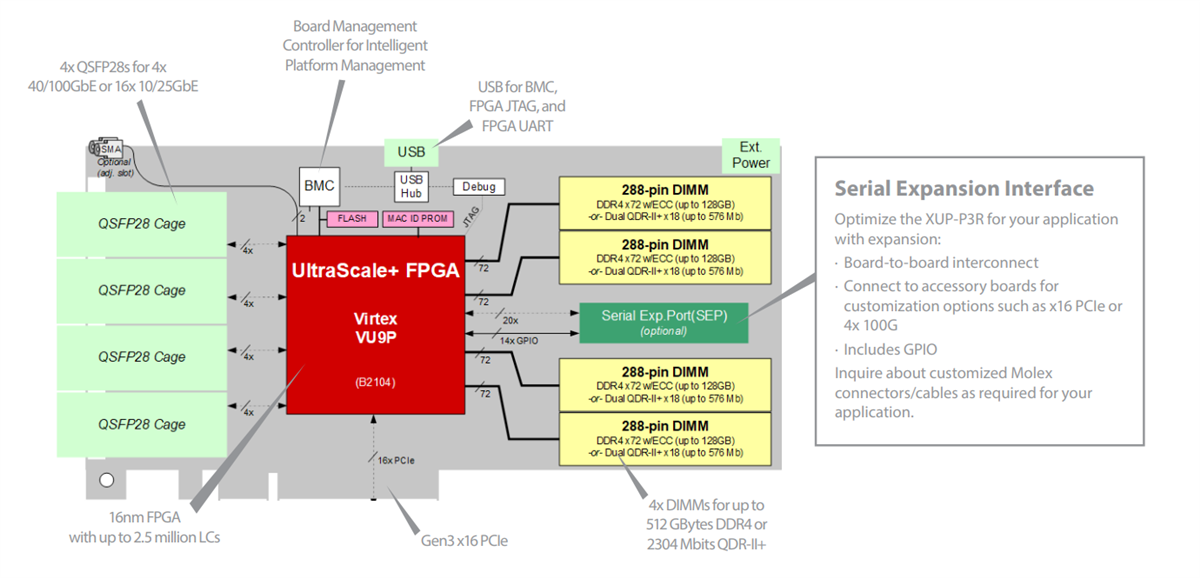

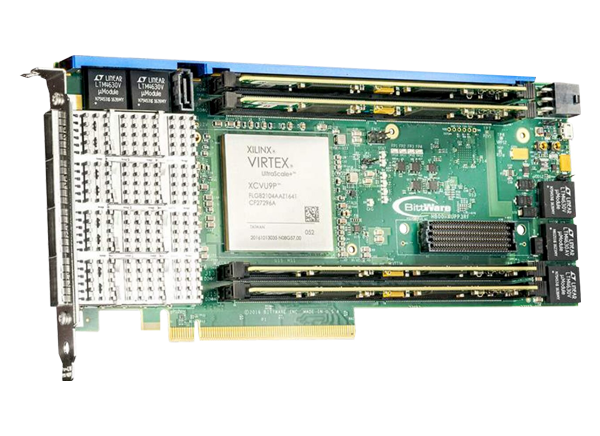

The BittWare XUP-P3R FPGA Accelerator Card provides extensive memory configurations, including support for up to 512 GBytes of memory. This includes sophisticated clocking and timing options and four front panel QSFP cages, each supporting up to 100Gbps (4x25), as well as 100GbE. SEP (serial expansion port) allows the XUPP3R to be expanded for an additional PCIe Gen3 x16 slot, supplementary 4 QSFPs, or connection between two XUPP3Rs.
The XUP-P3R Card integrates a Board Management Controller (BMC) for advanced system monitoring. This allows platform integration and management to be greatly simplified. These features make the XUP-P3R ideal for a wide range of data center applications, including network processing and security, acceleration, storage, broadcast, and SigInt.
