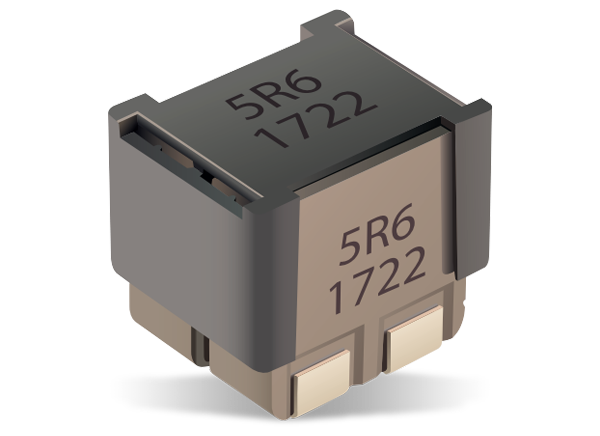

Bourns SRF1010DA Dual-Shielded Inductors

Bourns SRF1010DA Dual-Shielded Inductors are designed for Class-D amplifier applications. These inductors are dual-packaged with shielded construction and manufactured with a metal alloy powder core for a low coupling factor to minimize crosstalk. Additional features include high saturation current (5.5A to 38A), low DC resistance, and a wide operating temperature range of -55°C to +155°C. Bourns SRF1010DA Dual-Shielded Inductors are AEC-Q200 qualified, halogen free, and RoHS compliant.


  • Dual inductors
  • Shielded construction
  • Metal alloy powder core
  • Low coupling factor to minimize crosstalk
  • High saturation current
  • AEC-Q200 compliant
  • Halogen free and RoHS compliant


  • Class-D amplifier systems
  • Class-D output filters


  • 5.5A to 38A saturation current
  • Rated current: inductance drops 30% at Isat
  • -55°C to +155°C operating temperature range
  • 40°C temperature rise at rated Irms
  • Moisture sensitivity level (MSL) 1
  • 12mm x 9.6mm x 11.3mm dimensions
Published: 2018-10-25 | Updated: 2022-11-22
