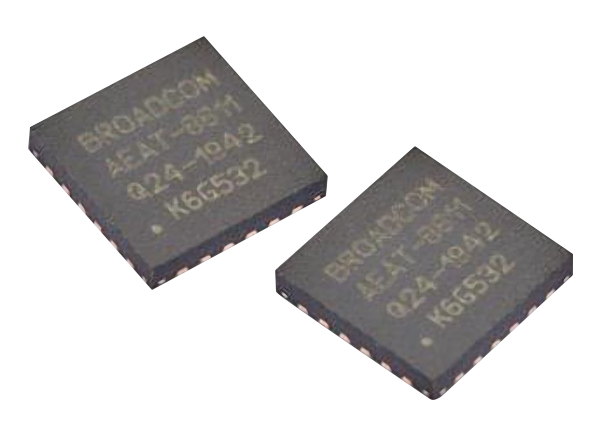

Broadcom AEAT-8811 Programmable Angular Magnetic Encoders

Broadcom AEAT-8811 Programmable Angular Magnetic Encoders are available in 10, 12, 14, or 16 bits of absolute resolution with no offset calibration. These magnetic encoder ICs provide accurate angular measurement over a full 360 degrees of rotation. The AEAT-8811 Encoders utilize integrated hall sensor elements with complex analog and digital signal processing within a single device. The simple two-pole magnet generates the necessary magnetic field by rotating it in perpendicular, placed in alignment to the center of the device. These encoders are user-programmable with zero position, direction, and index width and can select zero latency mode option.

The AEAT-8811 Magnetic Encoders are versatile solutions capable of supporting a broad range of applications with its robust architecture. This measures and delivers both absolute and incremental signals. These encoders operate from -40°C to +125°C temperature range and are available in compact QFN-24 (5mm x 5mm) package. Typical applications include brushless DC motor and stepper motor, resolver and potentiometer replacement, industrial automation and robotics, and industrial sewing machine and textile equipment.

Features

Selectable 10, 12, 14, or 16 bits of absolute resolution
Incremental output of ABI UVW:
- 32, 64, 128, 256, 512, 1024, 2048, 4096, 50, 100, 200, 400, 800, 1000, 2000, and 4000 CPR
PWM output modes
User-programmable zero position, direction, and index width
Selectable zero latency mode option

Programmable hysteresis
Available in 2-wire or 3-wire SSI options:
- Selectable 3-wire SSI option with initial data output at tri-state mode

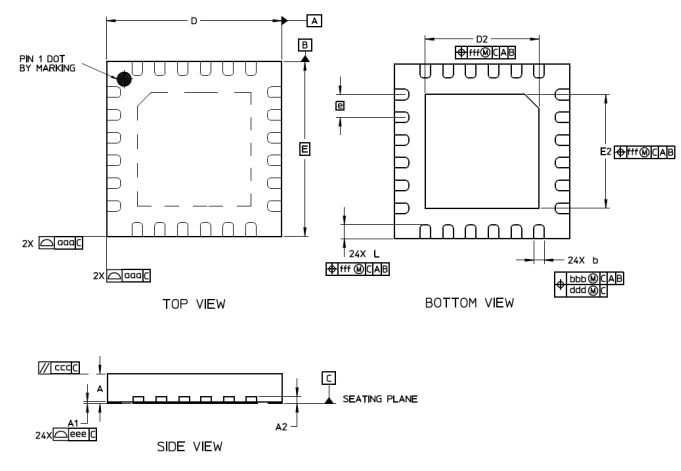

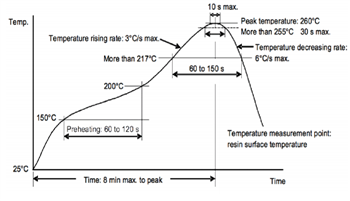

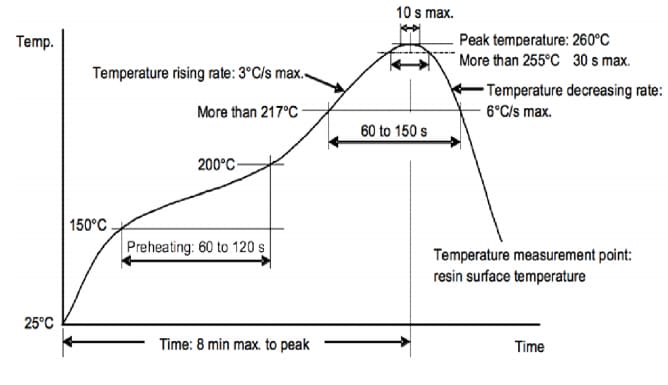

Compact QFN-24 (5mm x 5mm) package
RoHS compliant
No programming required for offset calibration
