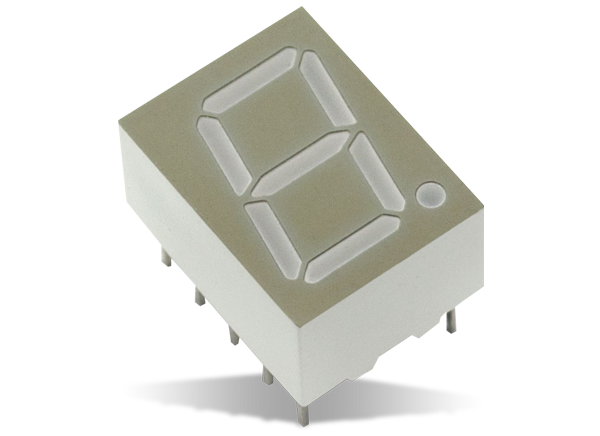

Broadcom 7 Segment Displays

Broadcom offers a wide variety of 7-segment displays, including the HDSP Series LED displays designed for viewing distances of up to 33 feet. Broadcom HDSM surface mount 7-segment LED displays feature low current operation along with excellent character appearance.

Features

  • HDSM Series
    • 0.39in digit height
    • Low current operation
    • Excellent character appearance
    • Available in CA and CC
    • Moisture Sensitivity Level: Level 3
    • RoHS compliant
  • HDSP-5 Series
    • Industry-standard size
    • Industry-standard pinout
      • 15.24 mm (0.6in.) DIP leads on 2.54mm (0.1in.) centers
    • Choice of colors
    • Excellent appearance
    • Evenly lighted segments
    • Mitered corners on segments
    • Gray package gives optimum contrast
    • ±50° Viewing angle
    • Design flexibility
      • Common anode or common cathode
      • Single and dual digits
      • Right-hand decimal point
      • ±1. Overflow character
    • Categorized for luminous intensity
    • Yellow and green categorized for color
    • Use of like categories yields a uniform display
    • High light output
    • High peak current
    • Excellent for long-digit string multiplexing
    • Intensity and color selection option
    • Sunlight viewable AlGaAs
  • HDSP-7 Series
    • Compact package
      • 0.300 x 0.500 inches
      • Leads on 2.54mm (0.1inch) centers
    • Choice of colors
    • Evenly lighted segments
    • Mitered corners on segments
    • Surface color gives optimum contrast
    • ±50° viewing angle
    • Common anode or common cathode
    • Right-hand decimal point
    • ±1. Overflow character
    • Categorized for luminous intensity
    • Yellow and green categorized for color
    • Use of like categories yields a uniform display
    • High light output
    • High peak current
    • Excellent for long-digit string multiplexing
    • Intensity and color selection available
    • Sunlight viewable AlGaAs
  • HDSP-A/HDSP-H Series
    • Black surface and color-tinted epoxy
    • Industry-standard size
    • Industry-standard pinout
    • Choice of character size
      • 7.6mm (0.30in.), 10mm (0.40in.), 14.2mm (0.56in.)
    • Choice of colors
    • Excellent appearance
    • Evenly lighted segments
    • ± 50° Viewing angle
    • Design flexibility
      • Common anode or common cathode
      • Single and two digit
    • Categorized for luminous intensity
    • Categorized for color: Green
    • Use of like categories yields a uniform display
    • Excellent for long-digit string multiplexing
  • HDSP-U
    • Compact package
    • 8mm (0.31 inch) character height
    • Wide range of colors
    • Evenly lighted segments
    • Mitered corners on segments
    • Gray/black surface gives optimum contrast
    • ±50° viewing angle
    • Common anode or common cathode
    • Right-hand decimal point
    • Categorized for luminous intensity:
      • Yellow and Green also categorized for color
      • Use of like categories yields a uniform display
    • High light output
    • High peak current
    • Excellent for long-digit string multiplexing
    • Intensity and color selection option
