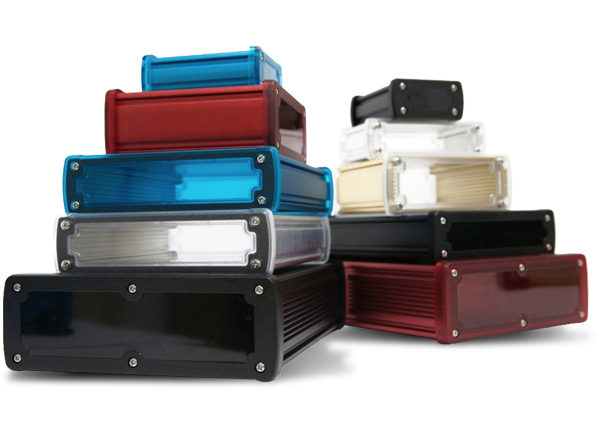

Bud Industries EXN Extruded Aluminum IP66 PCB Enclosures
Bud Industries EXN Extruded Aluminum IP66 PCB Enclosures combine esthetics and functionality, while providing IP66 Rated protection in a wide variety of sizes and colors. EXN Enclosures are ideal for fitted PCB And external mounting brackets, and may be used as a free-standing unit. The EXN series is available with polycarbonate or aluminum die-cast covers. and is suitable for a vast array of applications that may require an opaque, clear, IR, or very durable metallic cover.
Features
- 17 sizes available
- Designed to allow a PCB to slide in
- Grooved exterior for faster heat removal
- Easily modified covers and body
- Enclosures include continuous gaskets and can be used indoors or outdoors (IP66).
- Anodized enclosures come in a choice of five standard colors: gold, blue, red, silver, and black
- Covers are available in either colored polycarbonate plastic (UL94-V0) or Black powder coated die-cast aluminum (ADC-12).
- The exterior design of the enclosures includes a built-in 0.02in. recessed area on which a product label can be affixed and/or printed on directly.
- Specially designed exterior mounting brackets (not included # EXN-23370-MBK)
Published: 2016-07-12
| Updated: 2022-03-11
