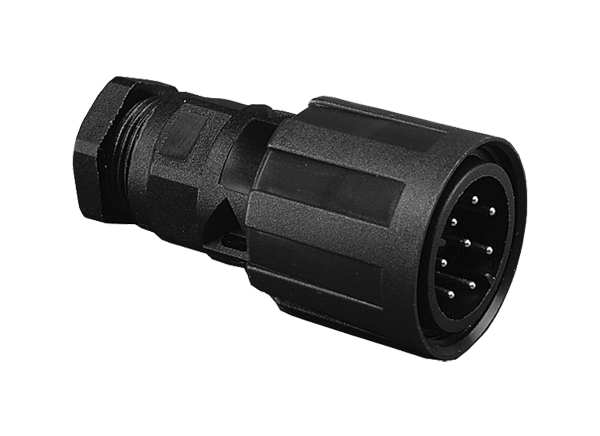

Bulgin Mini Buccaneer Circular Connectors

Bulgin Mini Buccaneer Circular Connectors provide reliable power up to 250V, 10A in a -20°C to +70°C operating temperature range. The components are available in five body styles: Flex, Flex In-Line, two styles of Panel, and Panel Side Entry. With secure, screw thread locking and IP68 rating, the Mini Buccaneer connectors are ideal for demanding marine and industrial applications.


  • Water and dustproof to IP68 when mated
  • IP68 rating tested at 1.054kg/cm2 (15lb/in2), 10m depth for 2 weeks
  • 2-, 3-, 4-, or 6-pole screw terminal inserts
  • 3- or 8-pole solder or crimp inserts
  • 5 body styles
    • Flex
    • Flex In-Line
    • 2 styles of Panels
    • Panel side entry
  • 50Ω or 75Ω BNC inserts
  • Ratings
    • 5A, 380VAC for 3- and 8-way solder/crimp terminals
    • 10A, 250VAC for 2- and 3-way screw terminals
    • 6A, 250VAC for 4-way screw terminals
    • 3A, 250VAC for 6-way screw terminals
  • EN60068-2-52 test Kb salt mist (cyclic) Marine Severity Level 1
  • Plug or socket connection in each body style
  • 3.5mm to 9mm cable range
  • ø26mm over coupling ring
  • Positive locating keyways, cannot be mismated
  • Sealing cps available to maintain IP68 rating of unmated connectors
  • UL94V-0 flammability rated materials
  • Leading earth pin is on 3-, 4-, and 6-pole screw terminal versions only
  • Compact design
  • Easy assembly, no special tools required on screw terminal versions
  • UL approval


  • <5mΩ contact resistance
  • >106MΩ insulation resistance at 500VDC
  • 2kV voltage proof at 50Hz
  • -20°C to +70°C operating temperature range
