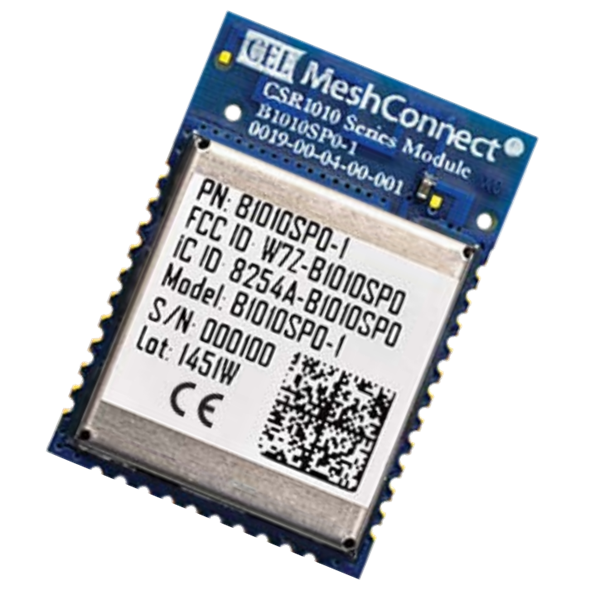

CEL B1010SP0 MeshConnect™ Bluetooth Smart Mini Modules

CEL B1010SP0 MeshConnect BLUETOOTH® Smart Mini Modules are single-mode BLUETOOTH® low energy devices. These modules eliminate the design risk and reduce time-to-market for BLUETOOTH® low-energy wireless solutions, including the innovative CSRmesh protocol. MeshConnect B1010SP0 modules provide a high 50m to 100m RF range. The CEL MeshConnect mini-modules are compatible with CEL's existing line of ZigBee and thread-based modules. This allows an easy transition between multiple wireless networking standards via drop-in compatible module hardware.


  • Supports BLUETOOTH® Smart v4.x, including ATT, GATT, SMP, L2CAP, GAP
  • Supports UART, I2C, and SPI
  • Based on the CSR1010
    • Supports the CSRMesh protocol
    • Full access to the CSR μEnergy SDK
  • Advanced power management scheme optimized for battery-powered applications
  • Drop-in compatibility with CEL ZigBee and thread-based modules
  • Supports CSRMesh™
  • 15x analog/digital I/O pins
  • Dual RF connectivity options
    • Integrated PCB antenna
    • External RF output via castellation
  • Surface-mountable package Castellation edge connectors with a 0.050" pitch for ease of assembly
  • Over-the-Air programming that supports OTA programming updates
  • Available with Avi-on™ software
  • Modules are 100% RF tested and pre-certified for FCC, CE, IC, and Bluetooth compliance


  • Connected home
  • Building automation
  • Sports and fitness sensors
  • Health sensors
  • Mobile accessories
  • General BLUETOOTH® wireless sensor networking


  • 50m to 100m RF range
  • 2402MHz to 2480MHz frequency range
  • 1.8V to 3.6V operating voltage range
  • +8dBm output power
  • -94dBm RX sensitivity
  • -30°C to +85°C operating temperature range
  • 1Mbps over-the-air data rate
  • 40 channels
  • RoHS compliant

Block Diagram

Block Diagram - CEL B1010SP0 MeshConnect™ Bluetooth Smart Mini Modules

Module Dimensions

Mechanical Drawing - CEL B1010SP0 MeshConnect™ Bluetooth Smart Mini Modules
