Central Semiconductor CMAD6001 Switching Diode

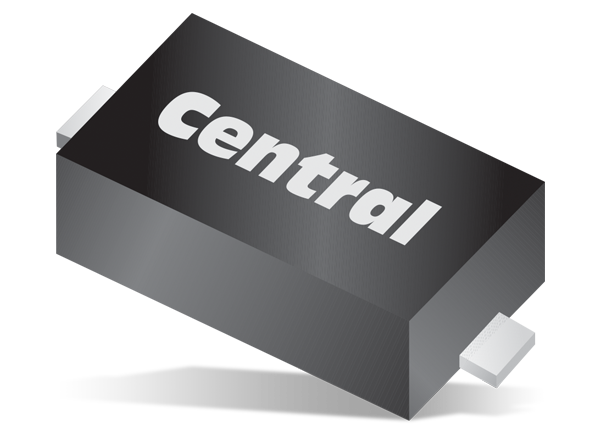

Central Semiconductor's CMAD6001 is an ultra-low leakage switching diode in a SOD-923 package. Ideal for applications in which very small size and operational efficiency are required, the high-quality 100V, 250mA diode has an extremely low leakage current (IR) of 0.5nA max. and low capacitance of 2.0pF max. The device utilizes 55% less board space and is 0.41mm high, making it ideal for industrial and telecom designs.

Features

  • Current (IF=250mA)
  • Forward voltage drop (VF=1.1V Max @ 100mA)
  • Low reverse current (500pA Max @ 75V)
  • Miniature, 0.8 x 0.6 x 0.4mm, ultra low height profile
  • FEMTOmini™ surface mount package

Applications

  • DC / DC Converters
  • Voltage clamping
  • Battery powered applications including
  • Protection circuits
  • Cell Phones, Digital Cameras, Pagers, PDAs, Laptop Computers, etc

SOD-923 CASE

Mechanical Drawing - Central Semiconductor CMAD6001 Switching Diode
