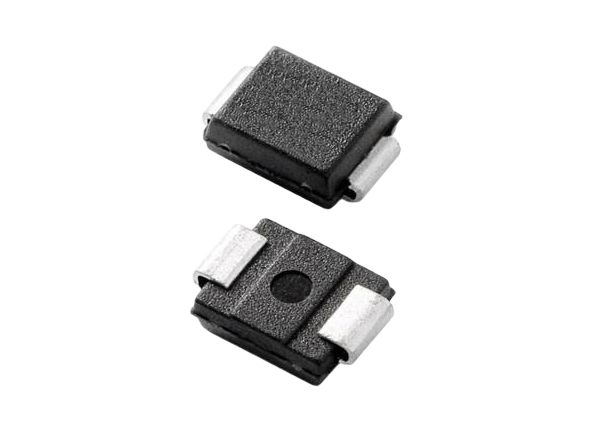

Eaton SMBJ 600W Transient Voltage Suppressors offer less than 1μA typical IR above 10V, and fast response time, typically less than 1.0ps from 0V to VBR minimum. The series provides 600W peak pulse power capability at 10/1000μs waveform and excellent clamping capability. The low-profile SMB UL 94V-0 packages are designed for surface-mounted applications to optimize board space. They are suitable for high-temperature reflow soldering (+260°C/40s at the terminal) and have terminals with solder-plated leads. Ideal applications for Eaton SMBJ 600W Transient Voltage Suppressors include consumer electronics, telecommunications, computing and servers, appliances, industrial automation, mobile, and wearables.
Low-profile SMB package
Excellent clamping capability
600W peak pulse power capability at 10/1000μs waveform
Less than 1μA typical IR above 10V
Fast response time, typically less than 1.0ps from 0V to VBR minimum
High-temperature reflow soldering: +260°C/40s at the terminal
Plastic package meets UL 94V-0 flammability rating
Meets moisture sensitivity level (MSL) 1
Terminal: Solder-plated leads, solderable per J-STD-002
Designed for surface-mounted applications to optimize board space
UL 497B recognized
Computing and servers
Mobile and wearables
