Altera / Intel Stratix® V GX Transceiver Signal Integrity Kit

Altera Stratix® V GX Transceiver Signal Integrity Development Kit is a complete design environment that includes the hardware and software needed to develop Stratix V GX FPGA designs. The one-year license for the Quartus® II software provides everything needed to begin developing custom Stratix V GX FPGA designs. This kit allows users to evaluate transceiver performance from 600Mbps to 12.5Gbps and generate and check the pseudo-random binary sequence (PRBS) patterns. A designer can dynamically change differential output voltage (VOD) pre-emphasis and equalization settings to optimize transceiver performance for your channel. The kit allows them to perform jitter analysis. The user can verify physical medium attachment (PMA) compliance to PCI Express® (PCIe®), Gbps Ethernet (GbE), XAUI, CEI-6G, Serial RapidIO®, high-definition serial digital interface (HD-SDI), and other major standards.

Kit Contents

  • Hardware

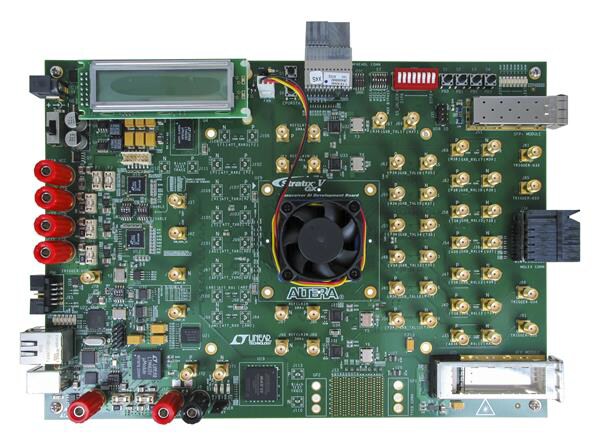

    • Stratix V GX transceiver signal integrity development board
    • Power supply and AC adapters for North America/Japan, Europe, and the United Kingdom
    • USB type A to B cable
    • Ethernet cable
  • Software
    • Quartus II Development Kit Edition (DKE)
    • Quartus II Software
    • MegaCore® IP Library
    • Nios® II Embedded Design Suite (EDS)
    • Development Kit Installer
Published: 2019-08-14 | Updated: 2023-05-01
