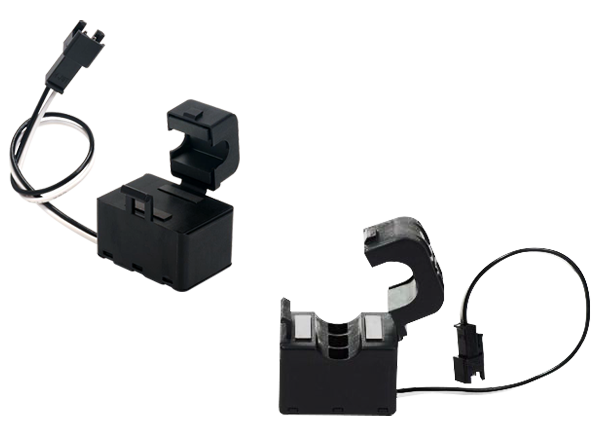

KEMET C/CT Clamp-On Current Sensors measure the current in live wires, offer a compact, slim design, and a convenient snap-on feature. C/CT current sensors feature flat temperature characteristics and are RoHS compliant. These sensors are ideal for high-performance distribution boards, power conditioners, power monitoring systems, and inverters and industrial machinery.
Compact and slim design
Flat temperature characteristics
UL94V-0 flame retardant rated case
30A to 120A rated current
4000 ±80V or 1000 ±20V output voltage
7.5V output protection
500VDC to 100MΩ insulation resistance
3000 current transformation ratio
−20°C to +60°C operating temperature range
EMS current measurement
High-performance distributions boards
Power monitoring systems
Inverters and industrial machinery
KEMET Sensor Components
Includes current, thermal, and proximity detection sensors.
