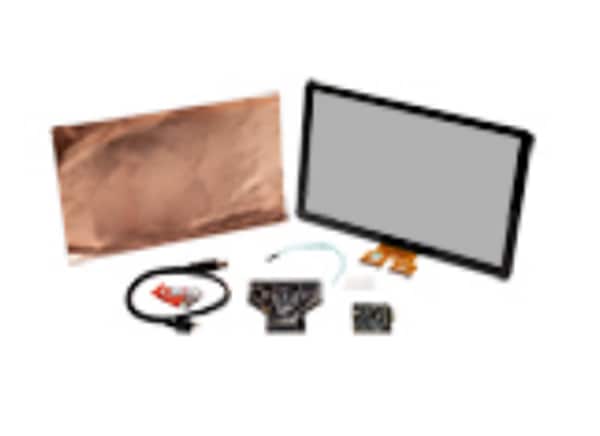

Microchip Technology ATEVK-MXT1x Development Kits are the I2C based version of the evaluation and development of Microchip's maXTouch applications. The ATEVK-MXT1189TDAT-A development kit uses ATMXT1189TDAT touchscreen sensor IC and the ATEVK-MXT1665TDAT-A development kit uses ATMXT1665TDAT touchscreen sensor IC for evaluation. The ATEVK-MXT1x development kits can be connected through a Flexible Printed Circuit (FPC) to an Indium Tin Oxide (ITO) glass touchscreen (MISC1071 and MISC1072). These kits include a copper flex panel to mimic the display loading-effect and self-adhesive feet to fix the touchscreen assembly on to the desk or bench. The touchscreen assembly can be mounted to a suitable display for the evaluation of on-screen performance.
Device can be connected through an FPC to an ITO glass touchscreen (MISC1071 and MISC1072)
Copper flex panel is included to mimic the display loading effect
Self-adhesive feet to fix the touchscreen assembly on to the desk or bench
1x 12" touchscreen assembly (MISC1071 and MISC1072)
