Microchip Technology ATtiny416 8-Bit Microcontrollers
Microchip Technologies ATtiny416 8-Bit Microcontrollers offer a high-performance, low-power AVR® RISC architecture with a maximum clock frequency up to 20MHz and a 4KB program memory size. These ATtiny416 8-bit MCUs also feature 256B of SRAM, 128B of EEPROM, and 4KB of in-system self-programmable flash memory. These MCUs use core independent peripherals and picoPower® technology to enable flexible and low power architecture. The MCUs include an event system, sleepwalking, accurate analog features, and advanced peripherals.

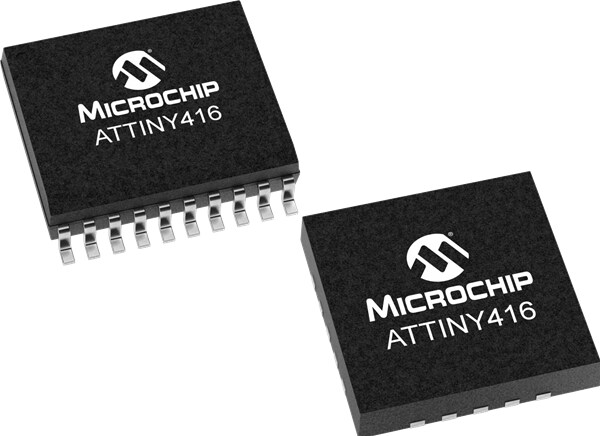

The Microchip Technology ATtiny416 MCUs are offered in 20-pin VQFN and SOIC300 packages. These devices are available with a -40ºC to 105ºC and -40ºC to 125ºC operating temperature range.
Features
- 8-bit CPU
- Single-cycle I/O access
- 4KB in-system self-programmable flash memory
- 128B EEPROM and 256B SRAM
- Brown-Out Detection (BOD)
- Power-On Reset (POR)
- Single pin Unified Program Debug Interface (UPDI)
- 12 Channel 10-bit Analog to Digital Converter (ADC) with Voltage Reference
- 8-bit Digital to Analog Converter (DAC)
- 18 programmable I/O lines
- 20-pin QFN 3x3 and SOIC300
- -40ºC to 105ºC operating temperature
- -40ºC to 125ºC temperature graded device options available
Related Products
Microchip Technology ATtiny414 8-Bit Microcontrollers
Offer high-performance and low-power AVR® RISC architecture with clock frequency up to 20MHz.
Development Tools
Microchip Technology ATtiny416 Xplained Nano Evaluation Kit
Hardware platform to evaluate the ATtiny416 microcontroller which are integrated with Atmel Studio.
Block Diagram
