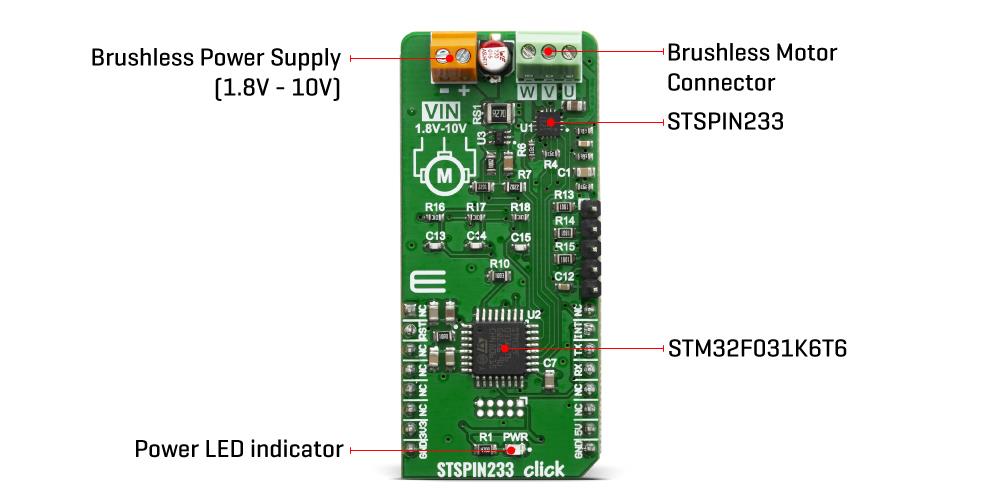

Mikroe STSPIN233 Click

Mikroe STSPIN233 Click is ideal for a 3-phase integrated motor driver, based on the STSPIN233 low voltage 3-phase integrated motor driver. The Mikroe click is optimized for battery-powered, low-voltage motor driving applications. It features a low standby current (max 80nA) and extremely low leakage current (max 1µA). The STSPIN233 is a high-efficiency motor driver with low ON resistance MOSFETs as the output stage. Its output stage implements the PWM current control with fixed OFF time, along with a full set of protection features. The device can be used with the step motor voltage ranging from 1.8V to 10V and current up to 1.3A per bridge.
