Murata Electronics GCG Automotive Conductive Epoxy MLCCs

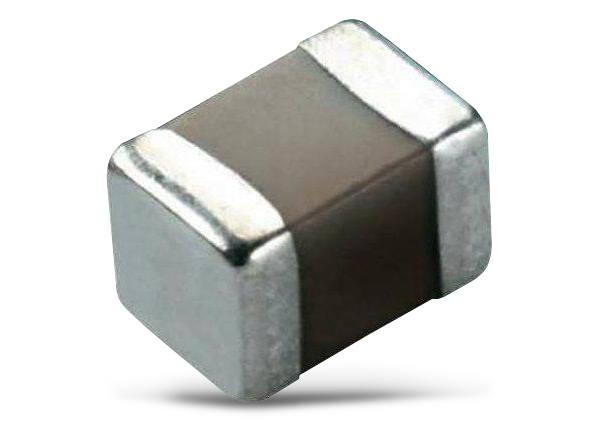

Murata Electronics GCG Automotive Conductive Epoxy Multilayer Ceramic Capacitors (MLCCs) feature gold-palladium (AgPd) electrodes that are limited to conductive epoxy mounting. These MLCCs can only be mounted with conductive epoxy glue. The capacitors have a 6.3VDC to 100VDC rated voltage and 1pF to 47µF capacitance range. Murata GCG MLCCs are rated for temperatures up to 150°C and designed for use in ABS or transmission automotive applications.
Features
- Parts must be mounted with conductive epoxy glue
- 1mm x 0.5mm to 3.2 x 2.5mm dimensions
- 6.3VDC to 100VDC rated voltage
- 1pF to 47µF capacitance
- Rated for temperatures up to 150°C
- Gold-palladium (AgPd) external electrodes
GCG chip structure
